The Flashforge Creator 3 Pro printer is a dual head 3d printer, which provides pretty good printing results just out of the box and works with Linux. Although at the time of this writing it has been just three years after product launch, Flashforge does not list the printer anymore at their official webpage. But there is still some information available on archive.org: Flashforge Creator 3 Pro.

Did you ever try to turn on the left or right cooling fan at the Flashprint¹⁾ control panel and observed that only the right cooling fan actually spins? I stumbled upon this, contacted Flashforge customer support, but after many fruitless discussions, it was also clear that Flashforge wasn't interested to fix anything at all.

When testing with a gcode file²⁾.

This long article is about getting the left cooling fan to work, starting reverse engineering with Ghidra and patching the firmware and much more.

So, I needed to verify if cool would only not spin at all. since these were hidden inside the printing enclosure and were hard to see. Furthermore, from the display status, fan information was not updated with actual fan rotating speed.

What complicated matters even more was that with the official slicing software from Flashforge, Flashprint, there is a manual machine control window, which let one press buttons for “cooling fan control”. Interestingly with this feature it did not seem to be possible to control the left fan: Regardless of pressing the button for starting the left or right cooling fan here, only the right fan would actually spin. This behaviour made me initially think that this was the reason, why PLA would not stick when printing with the left extruder. I

So after spending more time on it, I found out that when printing from a file, both fans would actually work as expected. Measurements with an oscilloscope confirmed that for both fans, rotation speed was controlled with PWM (Something which did not work on a Creator Pro 2, for example. See https://github.com/moonglow/flashforge_fan_fix for more information.). At that point, I had already started to reverse engineer the printers' firmware, trying to understand why one fan did not spin with the manual control in Flashprint. And it took just a few more months to understand the binary and create a patch, which then fixed the left cooling fan control.

Manual control in Flashprint looks like the following:

Flashprint right and left “Cooling Fan Control”

Please note the tiny little R and L character next to the fan symbol. Somehow Flashforge decided to place the button for the left cooling fan on the right and the button for the right cooling fan on the left.

To see how the buttons should work, please see the following two video clips:

With the video on the left, only the right cooling fan spins, regardless of pressing the button for the right or left fan. The video on the right demonstrates the software fix with both fans spinning correctly.

When these videos were sent to Flashforge customer support, they initially could not believe and asked whether they were real.

As explained earlier, Flashforge support was reluctant to do anything. But since I thought more people on the internet had a similar experience ³⁾, I realized the only option I had was to continue reverse engineer its firmware and patch it. All in all, the experience was quite educational. Things like getting console access, finding file structure, understanding ELF files, linking process, Ghidra, Arm assembly, debugging with the GNU Debugger (in short gdb), patching and much much more.

So if anyone plans to undertake something similar or is just curious to see how this was done, please continue reading. Anyway, the new installer can be downloaded from here:

To install, extract the archive to an empty FAT-formatted USB stick, switch off the printer. Then insert the USB stick and power on the printer. The installation should start automatically. When finished, the printer should indicate the firmware version is 1.4.1 with date 20241018. Please install at your own risk.

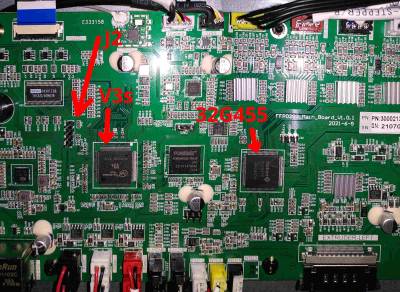

The main circuit board, mounted at the bottom, consists of two separate processors:

• Allwinner V3s with ARM Cortex A7 CPU, with integrated 64MB DDR2 RAM as main processor. (Click here to see Allwinner V3s Kernel/system boot messages.)
• Nation N32G455 with a 32-bit ARM Cortex-M4 core as motion controller. (Click here to see serial communication between main cpu and motion controller.)

Flashforge Creator 3 Pro Mainboard

The main role of the Allwinner cpu, apart from providing a graphical user interface, is to prepare gcode commands from internal saved files and/or commands sent over the network to the printer and forward them to the motion controller. In the other direction, the motion controller sends data, like temperature information to the main cpu. This can be seen when connecting a serial cable to the corresponding RX/TX pins (J25) on the main board.

The Flashforge linux based system is made with buildroot, as we can see when we try to login, using a serial cable at the circuit board at connector J2:

Welcome to flashforge
buildroot login: root
Password:
Login incorrect

There are a few methods for getting username and password.⁴⁾. To see what I used, please see following page.

For further reverse engineering it would be much more practical if we could use ssh, rather than a terminal over a serial cable. But from a port scan with nmap, ssh is not found, which was confirmed later on, after we got looked around at the system. So we would need to build ssh (dropbear) ourselves first, which can be easily done using buildroot.

Please click on this link for more information about how to build dropbear and install it to get ssh working.

Once an ssh server is installed at the printer, we can use ssh to look at the start-up procedure and system setup. There are several great tools which help with reverse engineering. I highly recommend Ghidra, which is an open-source disassembler and can do a few things which make it so much easier to understand what is going on. It is able to create from the raw binary ELF file an abstract kind of C code. It automatically adds labels to variables and memory locations, can create function graphs which shows the flow of the code and much more.

If we go a little bit back and look at the output messages over the serial cable at connector J2, using a baud rate of 115200, we can see the following at startup. (Please see here for more details and a full log)

U-Boot SPL 2017.01-rc2-00057-g32ab180-dirty (Jan 06 2021 - 10:39:41)
DRAM: 64 MiB
Trying to boot from MMC1

U-Boot 2017.01-rc2-00057-g32ab180-dirty (Jan 06 2021 - 10:39:41 +0800) Allwinner Technology

CPU:   Allwinner V3s (SUN8I 1681)
Model: Lichee Pi Zero
DRAM:  64 MiB
MMC:   SUNXI SD/MMC: 0
Setting up a 320x480 lcd console (overscan 0x0)
...
mmc0(part 0) is current device
reading script.bin
26972 bytes read in 23 ms (1.1 MiB/s)
reading uImage
3026952 bytes read in 158 ms (18.3 MiB/s)
## Booting kernel from Legacy Image at 41000000 ...
   Image Name:   Linux-3.4.39+
...

So apparently it is using U-Boot to get into Linux-3.4.39+

Once the linux kernel is loaded into memory⁵⁾, linux calls /etc/init.d/rcS. And when looking at this file, we can see at its tail it contains the following conditional expression to start /opt/auto_run.sh

...
if [ -f "/opt/auto_run.sh" ];then
        . /opt/auto_run.sh
fi

Since the file /opt/auto_run.sh is present, it is called and does then the following:

1. It checks if a system update is required. For this it tries to mount an external storage. If it finds a Creator3Pro*.tgz file on it, it will extract and update the system. If the file is not present, it looks for the file flashforge_init.sh and executes that instead if present.
2. Setup wifi using wpa_supplicant and a kernel module 8188fu.ko
3. Setup environment variables for the cross-platform application framework qt and for the touchscreen using tslib
4. Starts two processes in the background:
   1. /opt/mydaemon.out
   2. /opt/ffstartup-arm -f /opt/ffstartup.cfg

In /opt/ffstartup.cfg finally a reference is made to an application called “creator3-arm”:

  AppName = software/%VERSION%/creator3-arm
  AppArgs = 1;-qws

The application creator3-arm handles the user interface among others. Interestingly there are also arguments provided, from which -qws let the application use the qt windowing system. The application itself then serves as a front-end, sending commands to the motion controller, to control the printers' mechanics. The placeholder %VERSION% points to a version number formatted like: “1.4.0”. So the full path for the binary creator3-arm would be then:

/opt/software/1.4.0/creator3-arm

This file needs to be analyzed further and find out if it contains handling of commands to control the fans.

As mentioned above, we use ghidra to analyze the binary executable. When opening creator3-arm for the first time, some configuration is required.

1. Ghidra startup Screen 2. Starting a new Project 3. Select Project Type 4. Select Project Location

After clicking on Finish, the Flashforge_C3P Project should appear. Then start the Code Browser by clicking on the green Ghidra icon.

5. Projects List 6. Import File… 7. Ready for Analysis 8. Analysis Options

To import the creator3-arm file, click on: File → Import File… by selecting the binary and clicking on OK. After that it will ask if the file needs to be analyzed. Click on Yes and continue with configuring the analysis options: Enable the following additional options:

• ARM Aggressive Instruction Finder
• Decompiler Parameter ID

Then after showing a summary, the CodeBrowser window should appear with disassembly and pseude c-code.

9. Import Results Summary 10. CodeBrowser

Then click on Analyze and wait for Ghidra to finish.

Another helpful method to understand the printer's firmware and patches better is to use gdb, especially since the printer comes with it. When using gdb with creator3-arm, make sure to setup environment variables correctly and use specific arguments. This is what I found by analyzing the existing files:

# Terminate the following applications manually:
# /opt/mydaemon.out
# /opt/ffstartup-arm
# /opt/software/1.4.0/creator3-arm

# Find the corresponding process id's with:
ps ax

# Then kill with something like:
kill 131 132 136


# export the following variables:
export TSLIBDIR=/opt/tslib-1.4
export TSLIB_TSDEVICE=/dev/input/event0
export TSLIB_CALIBFILE=/opt/tslib-1.4/etc/pointercal
export TSLIB_CONSOLEDEVICE=none
export TSLIB_FBDEVICE=/dev/fb0
export TSLIB_TSEVENTTYPE=INPUT
export TSLIB_CONFFILE=/opt/tslib-1.4/etc/ts.conf
export TSLIB_PLUGINDIR=/opt/tslib-1.4/lib/ts
export QWS_MOUSE_PROTO="TSLIB:/dev/input/event0"
export QT_QPA_PLATFORM=linuxfb:tty=/dev/fb0:size=480x800:mmsize=225x123:offset=0
export QWS_DISPLAY=transformed:rot180:LinuxFB:mmWidth225:mmHeight123:0
export QT_QWS_FONTDIR=/opt/qt-4.8.6/lib/fonts
export QT_QPA_PLATFORM_PLUGIN_PATH=/opt/qt-4.8.6/plugins
export OPENSSLDIR=/opt/library/1.0.1/openssl-1.0.2d
export CURLDIR=/opt/library/1.0.1/curl
export LD_LIBRARY_PATH=/opt/library/1.0.1/openssl-1.0.2d/lib:/opt/library/1.0.1/curl/lib:/opt/mjpg-streamer/lib:/opt/qt-4.8.6/lib:/opt/tslib-1.4/lib:

# To prevent error from openssl: Program received signal SIGILL, Illegal instruction.
# 0xb6df7c68 in _armv7_tick ()
# from /opt/library/1.0.1/openssl-1.0.2d/lib/libcrypto.so.1.0.0
export OPENSSL_armcap=0


# Invoke gdb

  gdb /opt/software/1.4.0/creator3-arm

# Set breakpoint at entry point
  break *0x0028198

# Set additional breakpoints if necessary:
  break *0x0004e78a
  break *0x0004ea12
  ...

Verify if all breakpoints are set:
  (gdb) info b

# and run with command line arguments:

  (gdb) r 1 -qws

# Now gdb can be used as required.

The structure of ELF files is explained at many good places on the internet. I recommend the following:

• https://wiki.osdev.org/ELF
• BINARY_DISSECTION_COURSE

When inspecting creator3-arm⁶⁾ with the file command it reveals the following:

file creator3-arm
creator3-arm: ELF 32-bit LSB executable, ARM, EABI5 version 1 (SYSV),
dynamically linked, interpreter /lib/ld-linux.so.3, for GNU/Linux 2.6.31,
BuildID[sha1]=9fa452071c8601d8b08ad7875bbc71ee0f6c4845, stripped

From this we can get already a lot of information: The binary is compiled for 32-bit, using LSB byte order with dynamically linked files and expecting the linker (which finds the required libraries at runtime) at /lib/ld-linux.so.3. It adheres to the so-called Embedded Application Binary Interface EABI5 version 1 (SYSV) and is built for linux version 2.6.31.

For a better understanding of the structure of the different members of the ELF header the readelf command with the -h option can be very helpful. This command will display the following information:

readelf -h creator3-arm
ELF Header:
  Magic:   7f 45 4c 46 01 01 01 00 00 00 00 00 00 00 00 00
  Class:                             ELF32
  Data:                              2's complement, little endian
  Version:                           1 (current)
  OS/ABI:                            UNIX - System V
  ABI Version:                       0
  Type:                              EXEC (Executable file)
  Machine:                           ARM
  Version:                           0x1
  Entry point address:               0x28199
  Start of program headers:          52 (bytes into file)
  Start of section headers:          3352884 (bytes into file)
  Flags:                             0x5000202, Version5 EABI, soft-float ABI, <unknown>
  Size of this header:               52 (bytes)
  Size of program headers:           32 (bytes)
  Number of program headers:         8
  Size of section headers:           40 (bytes)
  Number of section headers:         29

When executing creator3-arm, the ELF program headers table describe to the ELF-loader how to bring the binary into memory space for execution. The table defines a series of segments, where each segment contains specific information for the kernel, like where and how to map ELF file's data into memory, whether the program needs a so-called runtime loader for bootstrapping which is done by the systems' ELF interpreter (As can be seen at the output of the file command from above: “interpreter /lib/ld-linux.so.3”), what the initial layout of the primary thread's thread-local-storage (TLS) should look like, and other kernel-relevant metadata such as whether the program should be given executable thread stacks⁷⁾.

To find the ELF program headers we use readelf:

readelf --program-headers creator3-arm

Which outputs the following:

Elf file type is EXEC (Executable file)
Entry point 0x28199
There are 8 program headers, starting at offset 52

Program Headers:
    Type      Offset   VirtAddr   PhysAddr   FileSiz  MemSiz   Flg Align
    EXIDX     0x32795c 0x0033795c 0x0033795c 0x009128 0x09128  R   0x4
    PHDR      0x000034 0x00010034 0x00010034 0x000100 0x00100  R E 0x4
    INTERP    0x000134 0x00010134 0x00010134 0x000013 0x00013  R   0x1
        [Requesting program interpreter: /lib/ld-linux.so.3]
    LOAD      0x000000 0x00010000 0x00010000 0x330a88 0x330a88 R E 0x10000
    LOAD      0x331000 0x00351000 0x00351000 0x001798 0x047dc  RW 0x10000
    DYNAMIC   0x3311dc 0x003511dc 0x003511dc 0x000148 0x00148  RW 0x4
    NOTE      0x000148 0x00010148 0x00010148 0x000044 0x00044  R  0x4
    GNU_STACK 0x000000 0x00000000 0x00000000 0x000000 0x00000  RW 0x10

Section to Segment mapping:
    Segment Sections...
        00  .ARM.exidx
        01
        02  .interp
        03  .interp .note.ABI-tag .note.gnu.build-id .hash .dynsym .dynstr
            .gnu.version .gnu.version_r .rel.dyn .rel.plt .init .plt .text
            .fini .rodata .ARM.extab .ARM.exidx .eh_frame
        04  .init_array .fini_array .jcr .dynamic .got .data .bss
        05  .dynamic
        06  .note.ABI-tag .note.gnu.build-id
        07

From the output we can see creator3-arm has eight program headers, from which the following are noteworthy:

• PHDR program header, which contains the program header table and its concerning metadata.
• INTERP program header, which tells the kernel that the file depends on an external loader file (/lib/ld-linux.so.3) to bring itself into memory. The other important task of the loader is that if dynamically linked libraries are used, a relocation process is done, using the global symbol table.
• LOAD program headers, tell the kernel and the loader how to get the program's data into memory. Each LOAD header directs the loader to create a region of memory with a given size, memory permissions, and alignment criteria, and tells the loader which bytes in the file to place in that region. The first LOAD header region is 0x330a88 bytes long and occupies the same size in memory, placed at virtual address 0x10000 with 64KB alignment and read + executable permissions. Given the large size, it is expected to find here the executable code which needs to be examined. Luckily, as we will see later on, the size is not using a full 64K alignment boundary, which means, that if we would need some extra space for additional code, we could increase the size until it aligns without the necessity to relocate higher adjacent regions.
• DYNAMIC program header, which is used by the loader to create links to their shared library dependencies. It is also used by the loader to fix relocations for program code and pointers, if the program resides at a different place in memory than it expects based on its virtual address.
• NOTE program header potentially contains vendor-specific metadata about the program itself, describing a table of key-value pairs where each entry has a string name mapped to a sequence of bytes that describe the entry.
• GNU_STACK program header defining memory regions where the stack is marked with a no-execute flag. With this flag code cannot be executed if it is on the stack. As there is no section associated with this header, it should be possible to place executable code on the stack.

The section headers, in contrast to the program headers, describe in more detail how the ELF file is divided into logical units. To get more information about the ELF sections, we use:

readelf --section-headers creator3-arm

which outputs the following:

There are 29 section headers, starting at offset 0x332934:
Section Headers:
  [Nr] Name              Type            Addr     Off    Size   ES Flg Lk Inf Al
  [ 0]                   NULL            00000000 000000 000000 00      0   0  0
  [ 1] .interp           PROGBITS        00010134 000134 000013 00   A  0   0  1
  [ 2] .note.ABI-tag     NOTE            00010148 000148 000020 00   A  0   0  4
  [ 3] .note.gnu.build-i NOTE            00010168 000168 000024 00   A  0   0  4
  [ 4] .hash             HASH            0001018c 00018c 0021ac 04   A  5   0  4
  [ 5] .dynsym           DYNSYM          00012338 002338 004830 10   A  6   1  4
  [ 6] .dynstr           STRTAB          00016b68 006b68 0081ae 00   A  0   0  1
  [ 7] .gnu.version      VERSYM          0001ed16 00ed16 000906 02   A  5   0  2
  [ 8] .gnu.version_r    VERNEED         0001f61c 00f61c 000130 00   A  6   5  4
  [ 9] .rel.dyn          REL             0001f74c 00f74c 000160 08   A  5   0  4
  [10] .rel.plt          REL             0001f8ac 00f8ac 001fe8 08   A  5  12  4
  [11] .init             PROGBITS        00021894 011894 00000c 00  AX  0   0  4
  [12] .plt              PROGBITS        000218a0 0118a0 003098 04  AX  0   0  4
  [13] .text             PROGBITS        00024938 014938 1a863c 00  AX  0   0  8
  [14] .fini             PROGBITS        001ccf74 1bcf74 000008 00  AX  0   0  4
  [15] .rodata           PROGBITS        001ccf80 1bcf80 13b5d4 00   A  0   0  8
  [16] .ARM.extab        PROGBITS        00308554 2f8554 02f408 00   A  0   0  4
  [17] .ARM.exidx        ARM_EXIDX       0033795c 32795c 009128 00  AL 13   0  4
  [18] .eh_frame         PROGBITS        00340a84 330a84 000004 00   A  0   0  4
  [19] .init_array       INIT_ARRAY      00351000 331000 0001d4 00  WA  0   0  4
  [20] .fini_array       FINI_ARRAY      003511d4 3311d4 000004 00  WA  0   0  4
  [21] .jcr              PROGBITS        003511d8 3311d8 000004 00  WA  0   0  4
  [22] .dynamic          DYNAMIC         003511dc 3311dc 000148 08  WA  6   0  4
  [23] .got              PROGBITS        00351324 331324 001008 04  WA  0   0  4
  [24] .data             PROGBITS        0035232c 33232c 00046c 00  WA  0   0  4
  [25] .bss              NOBITS          00352798 332798 003044 00  WA  0   0  8
  [26] .comment          PROGBITS        00000000 332798 00006a 01  MS  0   0  1
  [27] .ARM.attributes   ARM_ATTRIBUTES  00000000 332802 000031 00      0   0  1
  [28] .shstrtab         STRTAB          00000000 332833 000101 00      0   0  1
Key to Flags:
  W (write), A (alloc), X (execute), M (merge), S (strings), I (info),
  L (link order), O (extra OS processing required), G (group), T (TLS),
  C (compressed), x (unknown), o (OS specific), E (exclude),
  y (purecode), p (processor specific)

For clarity some sections have been left out. In general following sections are interesting for reverse engineering:

• .interp: Contains data which is used by the program header INTERP.
• .text: Carries all executable machine code instructions.
• .data: Holds allocated addresses for variables which are defined as global or as static function-local variable.
• .rodata: Holds read-only data which is used to store global data that should not be modified during execution.
• .bss: Contains global uninitialized variables, which is initialized to zero when the program starts to run.

The same can be seen with more clarity with the objdump -h -w command:

objdump -h -w creator3-arm

creator3-arm:     file format elf32-little

Sections:
Idx Name               Size      VMA       LMA       File off  Algn  Flags
  0 .interp            00000013  00010134  00010134  00000134  2**0  CONTENTS, ALLOC, LOAD, READONLY, DATA
  1 .note.ABI-tag      00000020  00010148  00010148  00000148  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
  2 .note.gnu.build-id 00000024  00010168  00010168  00000168  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
  3 .hash              000021ac  0001018c  0001018c  0000018c  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
  4 .dynsym            00004830  00012338  00012338  00002338  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
  5 .dynstr            000081ae  00016b68  00016b68  00006b68  2**0  CONTENTS, ALLOC, LOAD, READONLY, DATA
  6 .gnu.version       00000906  0001ed16  0001ed16  0000ed16  2**1  CONTENTS, ALLOC, LOAD, READONLY, DATA
  7 .gnu.version_r     00000130  0001f61c  0001f61c  0000f61c  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
  8 .rel.dyn           00000160  0001f74c  0001f74c  0000f74c  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
  9 .rel.plt           00001fe8  0001f8ac  0001f8ac  0000f8ac  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
 10 .init              0000000c  00021894  00021894  00011894  2**2  CONTENTS, ALLOC, LOAD, READONLY, CODE
 11 .plt               00003098  000218a0  000218a0  000118a0  2**2  CONTENTS, ALLOC, LOAD, READONLY, CODE
 12 .text              001a863c  00024938  00024938  00014938  2**3  CONTENTS, ALLOC, LOAD, READONLY, CODE
 13 .fini              00000008  001ccf74  001ccf74  001bcf74  2**2  CONTENTS, ALLOC, LOAD, READONLY, CODE
 14 .rodata            0013b5d4  001ccf80  001ccf80  001bcf80  2**3  CONTENTS, ALLOC, LOAD, READONLY, DATA
 15 .ARM.extab         0002f408  00308554  00308554  002f8554  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
 16 .ARM.exidx         00009128  0033795c  0033795c  0032795c  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
 17 .eh_frame          00000004  00340a84  00340a84  00330a84  2**2  CONTENTS, ALLOC, LOAD, READONLY, DATA
 18 .init_array        000001d4  00351000  00351000  00331000  2**2  CONTENTS, ALLOC, LOAD, DATA
 19 .fini_array        00000004  003511d4  003511d4  003311d4  2**2  CONTENTS, ALLOC, LOAD, DATA
 20 .jcr               00000004  003511d8  003511d8  003311d8  2**2  CONTENTS, ALLOC, LOAD, DATA
 21 .dynamic           00000148  003511dc  003511dc  003311dc  2**2  CONTENTS, ALLOC, LOAD, DATA
 22 .got               00001008  00351324  00351324  00331324  2**2  CONTENTS, ALLOC, LOAD, DATA
 23 .data              0000046c  0035232c  0035232c  0033232c  2**2  CONTENTS, ALLOC, LOAD, DATA
 24 .bss               00003044  00352798  00352798  00332798  2**3  ALLOC
 25 .comment           0000006a  00000000  00000000  00332798  2**0  CONTENTS, READONLY
 26 .ARM.attributes    00000031  00000000  00000000  00332802  2**0  CONTENTS, READONLY

Please REPHRASE this part. Write what relocation means, how it happens. This is important because additional code must somehow be able to be embedded within existing code, without additional relocation difficulties.

Questions I was confronted with were, rather how relocation happens upon linking process at startup, where in the file is it possible to put these patches and what can be done, if there is no space available (if the original code does not have any free area where to place the patched code.).

There are many great webpages and books available on this topic.⁸⁾.

Information about assembly, linker and linker scripts was very valuable as well⁹⁾. The process to create binary files from assembly files, stripping the library and ultimately patch firmware by overwriting it.

Then, after understanding enough about the system, I created a fix for the M106 and M107 commands. This was done by reusing code for the M104 and M108 commands, adapting them for M106 and M107. Because the gcode functions in the main application work more or less like a proxy, forwarding incoming gcode commands to the motion controller, the essential change consisted of letting pointers in the M104 and M108 functions point to other memory locations where the characters 'M106' and 'M107' were present.
Then all what was basically necessary was to replace the existing M106 and M107 functions.
Because the new M106 function was larger than the original, it could not be placed at the original memory location. There all the studying about ELF files paid out, because I discovered that due to memory alignment considerations at the end of the .text segment, there was just enough space to place the new M106 function. The new M107 function also was larger, but I was able to put that at the original defunct M106/M107 memory locations.

When looking at the program headers in the ELF file, we can see the following information:

  Start of program headers:          52 (bytes into file)
  Size of this header:               52 (bytes)
  Size of program headers:           32 (bytes)
  Number of program headers:         8

Then, when looking at the all of the eight program headers, and verifying the permissions at the p-flags, only program header 3 is executable and contains the actual program.

# program header 3
00000094: 0100 0000 0000 0000 0000 0100 0000 0100  ................
000000a4: 880a 3300 880a 3300 0500 0000 0000 0100  ..3...3.........
p_type:   (4 bytes) PT::LOAD
p_offset: (4 bytes) 0x000000 (      0)
p_vaddr:  (4 bytes) 0x010000 (  65536)
p_paddr:  (4 bytes) 0x010000 (  65536)
p_filesz: (4 bytes) 0x330a88 (3345032)
p_memsz:  (4 bytes) 0x330a88 (3345032)
p_flags:  (4 bytes) X | R
p_align:  (4 bytes) 0x010000 (  65536)
p_data:   0x00 - 0x330a87 (3345032 bytes)

Interestingly this program header has a p_align of 65536 bytes, which means that at the end 1398 bytes should be available:

With a hex editor one can observe that this area indeed is filled with 0x00: From 0x330a88 to 0x330fff (3345032 - 3346431 = 1399 bytes)

With that it should be possible to inject Code from the M104 command (979 bytes) into this area and adapt for the M106 command.

When clicking a button in Flashprint to start or stop a fan, a network command is sent to the printer, which can be captured with tcpdump and analyzed with wireshark. Interestingly, Flashprint does actually differentiate between the left and right cooling fan by sending also the index to the printer. It is just looks like the printer does not interpret that parameter.

For further debugging, it is much easier to directly send a command to the printer than using Flashprint. We can use the tool netcat for this.

The command to set the right (index 0) or left (index 1) fan to full speed using netcat would be:

echo "~M106 S255 T0" | nc -N printer.localhost 8899
echo "~M106 S255 T1" | nc -N printer.localhost 8899

(Where printer.localhost is resolved into the address of the Flashforge 3d printer.)

The printer returns an acknowledgement:

CMD M106  Received.

From analysis of the rootfs, the main application (creator3-arm) would always be started with the command line options “1 -qws”:

creator3-arm 1 -qws

But after analyzing with ghidra, I saw, there is also a -debug option, which, when used, reveal many interesting messages on the terminal. These look like:

...
serial/SerialObject.cpp serialSendCode 415 "G90"
serial/SerialObject.cpp serialSendCode 415 "G92 A0 B0"
serial/SerialObject.cpp serialSendCode 415 "M140 S50"
serial/SerialObject.cpp serialSendCode 415 "M104 S200 T0"
serial/SerialObject.cpp serialSendCode 415 "M104 S0 T1"
Execute/onetimesclicked.cpp setOneTimesClicked 37
UI/buildprint.cpp on_stop_pressed 1038
UI/mainwindow.cpp dialogTwoButtonClose 732
Dialog/twobuttondialog.cpp TwoButtonDialog 25 title= "Cancel print job" text= "Are you sure?" okText= "Yes" backText= "No"
Execute/onetimesclicked.cpp slot_oneTimesClicked 47
Execute/onetimesclicked.cpp setOneTimesClicked 37
Dialog/twobuttondialog.cpp on_ok_pressed 84
...

We can see in the snippet above, that there is a function serialSendCode which sends various commands to the Nation N32G455 (ARM Cortex-M4). The interesting thing with this, is that we can see exactly what is sent to the N32G455.

Without deep understanding yet of the inner workings, I noticed the M104 function in comparison, did send more arguments to the Nation N32G455 chip. As an experiment, I changed the string “M104” in “M106” in the binary and noticed that when sending the M104 command using netcat, the main processor would send M106 instead to the Nation N32G455, with the arguments which I provided: The left fan started spinning for the first time!

With that, a possible fix was found: Function M104 could be cloned and used to handle M106.

Not much later, while inspecting with ghidra, I found the large switch-case statement where all gcode commands are evaluated. For M106 the relevant address is at 0x131620 and for M104 it is at 0x13170e:

...
LAB_00131618:   XREF[1]:     001315c8(j)
    00131618 1c 2c           cmp        r4,#0x1c
    0013161a 00 f0 26 81     beq.w      LAB_0013186a
    0013161e 32 dd           ble        LAB_00131686
    00131620 6a 2c           cmp        r4,#0x6a          @ r4 = 106  <--- M106
    00131622 00 f0 55 81     beq.w      LAB_001318d0
    00131626 72 dd           ble        LAB_0013170e
    00131628 6c 2c           cmp        r4,#0x6c
    0013162a 00 f0 48 81     beq.w      LAB_001318be
    0013162e c0 f2 d4 80     blt.w      LAB_001317da
    00131632 70 2c           cmp        r4,#0x70
    00131634 00 f0 33 81     beq.w      LAB_0013189e
    00131638 72 2c           cmp        r4,#0x72
    0013163a 40 f0 95 80     bne.w      LAB_00131768
...
LAB_0013170e    XREF[1]:        00131626(j)
    0013170e 68 2c           cmp        r4,#0x68          @ r4 = 104  <--- M104
    00131710 00 f0 83 80     beq.w      LAB_0013181a
...

And M106 is further handled at LAB_001318d0:

LAB_001318d0    XREF[1]:        00131622(j)
    001318d0 28 46           mov        param_1,r5
    001318d2 08 99           ldr        param_2,[sp,#param_5]
    001318d4 f8 f7 2c fe     bl         FUN_0012a530    undefined FUN_0012a530()
    001318d8 b0 fa 80 f0     clz        param_1,param_1
    001318dc 40 09           lsrs       param_1,param_1,#0x5
    001318de fa e6           b          LAB_001316d6

At LAB_001318d0, parameters param_1 (Which goes to r0) and param_2 (to r1) are set, before calling the rest of M106 at FUN_0012a530. The calling convention for handling over parameters in c functions in arm architecture is not by placing them on the stack, but using r0, r1, r2 and r3 instead for the first four function arguments.

For comparison, the parameter preparation for M104 at LAB_0013181a takes one argument more (mov param_2,r8) and looks like:

LAB_0013181a    XREF[1]:        00131710(j)
    0013181a 41 46           mov        param_2,r8
    0013181c 28 46           mov        param_1,r5
    0013181e 08 9a           ldr        param_3,[sp,#param_5]
    00131820 fb f7 bc f9     bl         FUN_0012cb9c    undefined FUN_0012cb9c()
    00131824 b0 fa 80 f0     clz        param_1,param_1
    00131828 40 09           lsrs       param_1,param_1,#0x5
    0013182a 54 e7           b          LAB_001316d6

This means that to be able to re-use the function M104, not only function M104 needs to be copied but also the parameter preparation for M104.

Like M106, the original M107 gcode command would ignore the index as argument. So neither “M107 T0”, nor “M107 T1” would make any difference. And instead it would always only stop the right fan.

So in order to fix this, with the understanding of the fix for the M106 function, we just need to clone an available function, which is able to handle an index as argument and modify this for M107. For this, the function M108 was used.

The arm binary needed to be patched at several locations. During debugging and development, a script was written which takes a csv file containing target addresses, references to .s assembly files and assembles these. The script can be found here: (TODO)

The assembled binaries are then placed at the given positions into the original file.

The .csv file which was used to solve the issues and create software version 1.4.1 looks like the following:

0x0100a4;"src/ELF_FileSiz_MemSiz.s";"Max out ELF .text section size from alignment provision"
0x1318d0;"src/m106_args_preparation.s";"Fix function argument handling for function M106"
0x330a88;"src/m106_fun.s";"Fix function M106"
0x1317da;"src/m107_args_preparation.s";"Fix function argument handling for function M107"
0x12a530;"src/m107_fun.s";"Fix function M107"
0x1d437c;"src/bump_up_version.s";"bump up software version from 1.4.0 to 1.4.1"
0x1d4370;"src/bump_up_date.s";"modify software creation date from 20230201 to 20241018"

Here column 1 contains the address where to place the binary file. This is the so-called VirtAddress of the code in memory and starts at 0x10000. To calculate the position where to place the code at the file, it is necessary to subtract 0x10000 from the address.

Column 2 contains the Gnu as assembly .s file which needs to be assembled. Most of the code was copied from Ghidra and rewritten by hand to be compatible to Gnu as. To resolve the labels into addresses, the opcode was taken and looked up with the online tool armconverter.

Column 3 contains an arbitrary description which is shown when running the script.

The script itself has the sha256 embedded of the 1.4.0 target file and will only continue when it matches. The heavy lifting is done with the following tools:

• arm-linux-gnueabihf-as to assemble the .s file into .o object file for thumb.
• arm-linux-gnueabihf-ld linker to relocate the object file to an elf file with a certain target address.
• arm-linux-gnueabihf-objcopy to extract only the .text section from the object file and convert the relocated elf file into a binary file, resulting in a file only containing the assembled instructions without any overhead.
• dd to overwrite (using conv=notrunc) the existing code with the binary file

The latest official firmware from Flashforge (Februar 2023) is version 1.4.0.
